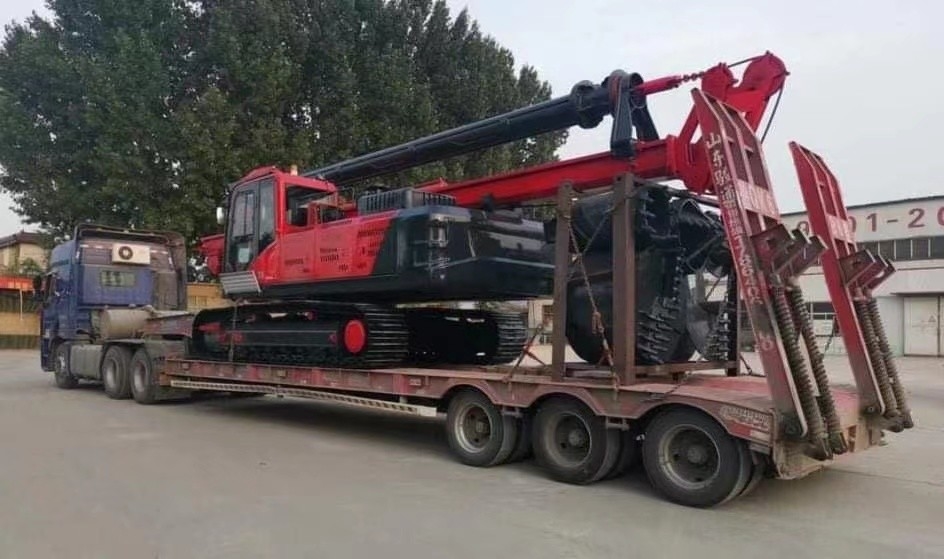

MDT-30 10m Depth Borepile Rotary Piling Rig High Flexibility

MDT-30 Borepile Rotary Drilling Rig
Working model : hydraulic oil cylinder pressure

Drilling diameter:
500-1500mm

Drilling depth: 10-30m
Dimension: 9.2*2.5m*3.25m
Total weight :18-23ton

Power head output torque:
80-100KN.m

Rotary speed: 6-35rpm
Max oil pressure: 80KN
Max lifting force : 100KN

Winch lifting force -100KN
Winch lifting speed : 45m/min

Assist winch max lifting force
30KN
Assist winch max lifting speed
60m/min

Cylinder max stroke:2500mm
Mast sidewards inclination :+4° -4
Mast forward inclination /4°

Working pressure :25Mpa
Pilot pressure: 3.5Mpa
Crawler speed : 2.3km/h

Working height : 10800mm

Engine :151KW Cummins, water cool. Turbo charger

Max torque: 425N.m

————-
