Product Details:
|
| Application: | Water Well,Geological Exploration,soil Testing Drilling Rig | Warranty: | 12 Months |
|---|---|---|---|
| Type: | Core Drilling Rig,Rotary Drilling Rig,water Well Drilling Rig | Voltage: | 380V,220v,220V/380V |
| Drilling Diameter: | 46-110mm,75-150mm | Feature: | High Drilling Efficiency,diesel Engine Mounted,Multi-functional |
| Highlight: | ISO9001 Soil Testing Drilling Rig,50mm Soil Testing Drilling Rig,380V Geological Exploration Soil Testing Rig |
||

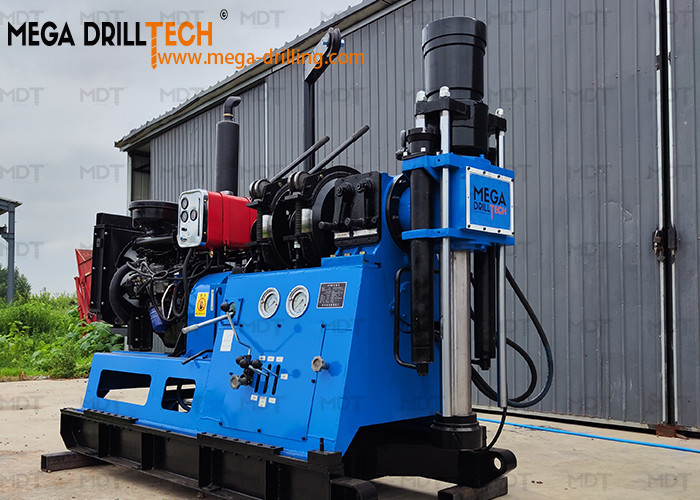

Geological Exploration Soil Testing Drilling Rig 220V/380V 50mm 42mm
| Drilling rod type | Drill rod size | Drilling depth | ||||||||||
|
China made drilling rod |
Inner-incrassational drillng rod | 42mm drill rod | 480m | |||||||||
| 50mm drill rod | 350m | |||||||||||
| 60mm drill rod | 250m | |||||||||||
| Wireline drill rod | 55.5mm | 400m | ||||||||||
| 71mm | 290m | |||||||||||
| 89mm | 230m | |||||||||||
| DCDMA Drill rod | Drilling rod of wires to core | BQ drill rod | 440m | |||||||||
| NQ drill rod | 290m | |||||||||||
| HQ drill rod | 195m | |||||||||||
| PQ drill rod | 135m | |||||||||||
| 2, Inclination range if vertical shaft 0-360degree | ||||||||||||
| 3,Power Machine | Model | Power | Speed | Weight | ||||||||
| Electric motor | Y180L-4 | 22kw | 1470r/min | 190kg | ||||||||
| Diesel engine | 4L68 | 24KW | 1500r/min | 215kg | ||||||||
| 4,Swive head | ||||||||||||
| Type | Double-cylinder feeding and mechanical gyre | |||||||||||
| Spindle diameter | φ80mm | |||||||||||
|
Spindle Speed |
Forward(r/min) | 58 101 160 221 234 406 640 885 | ||||||||||
| Reverse(r/min) | 46 183 | |||||||||||
| Max Torque | 3000N·m | Feeding travel of vertical shaft | 600mm | |||||||||
| Max.uplifting force of vertical shaft | 60KN | Max.feeding force of vertical shaft | 100KN | |||||||||
| 5, Hoist | ||||||||||||
| Type | Planetary gear transmission system | |||||||||||
| Diameter of wire rope | φ14mm | |||||||||||
| Drum Capacity | 45m(five layers) | |||||||||||
|
Max.hoisting force (single rope) |
30KN | |||||||||||
| Hoisting velocity | Hoisting velocity(second layer)0.45 0.785 1.24 1.71 | |||||||||||
