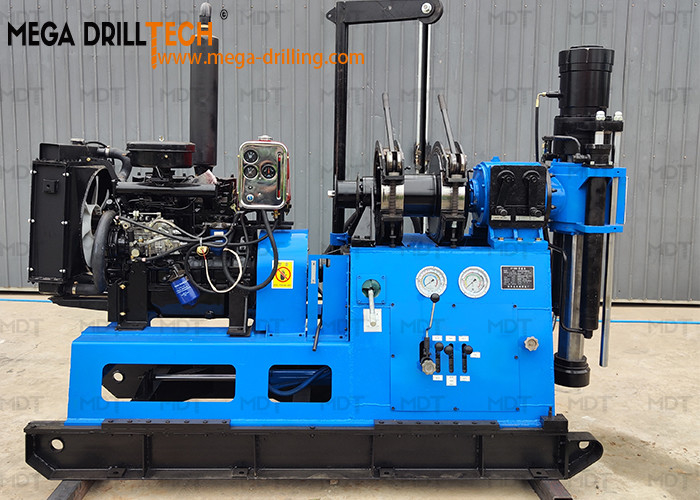

Mega Gasoline Diesel Soil Testing Drilling Rig ISO 9001

Mega Gasoline Diesel Soil Testing Drilling Rig ISO 9001
Mega Gasoline Diesel Soil Testing Drilling Rig ISO 9001

Large Image :  Mega Gasoline Diesel Soil Testing Drilling Rig ISO 9001

Product Details:
Place of Origin: China
Brand Name: Mega Drilltech
Certification: ISO-9001
Model Number: MDT-300
Payment & Shipping Terms:
Minimum Order Quantity: 1units
Packaging Details: wooden case
Delivery Time: 5-8days
Payment Terms: T/T

Mega Gasoline Diesel Soil Testing Drilling Rig ISO 9001

Description
Usage: Water Well,Geotechnical Engineering,soil Sampling Drilling Machine Application: Water Well,Geological Exploration,soil Testing Drilling Rig
Condition: New Power Type: Diesel,Electric,Gasoline
Warranty: 12 Months Type: Core Drilling Rig,Rotary Drilling Rig,water Well Drilling Rig
High Light:

24KW Diesel Soil Testing Drilling Rig

,

ISO Gasoline Soil Testing Drilling Rig

Mega Gasoline Diesel Soil Testing Drilling Rig ISO-9001



MDT-300 is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different diameter but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big diameter . It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.


Drilling rod type Drill rod size Drilling depth

China made

drilling rod

Inner-incrassational drillng rod 42mm drill rod 480m
50mm drill rod 350m
60mm drill rod 250m
Wireline drill rod 55.5mm 400m
71mm 290m
89mm 230m
DCDMA Drill rod Drilling rod of wires to core BQ drill rod 440m
NQ drill rod 290m
HQ drill rod 195m
  PQ drill rod 135m
2, Inclination range if vertical shaft 0-360degree
3,Power Machine Model Power Speed Weight
Electric motor Y180L-4 22kw 1470r/min 190kg
Diesel engine 4L68 24KW 1500r/min 215kg
4,Swive head
Type Double-cylinder feeding and mechanical gyre
Spindle diameter φ80mm



Spindle Speed

Forward(r/min) 58 101 160 221 234 406 640 885
Reverse(r/min) 46 183
Max Torque 3000N·m Feeding travel of vertical shaft 600mm
Max.uplifting force of vertical shaft 60KN Max.feeding force of vertical shaft 100KN
5, Hoist
Type Planetary gear transmission system
Diameter of wire rope φ14mm
Drum Capacity 45m(five layers)

Max.hoisting force

(single rope)

30KN
Hoisting velocity Hoisting velocity(second layer)0.45 0.785 1.24 1.71
