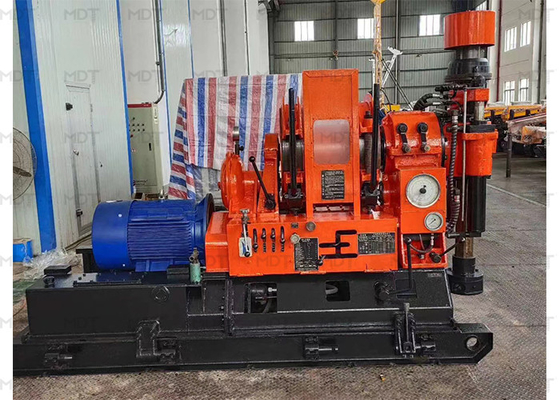

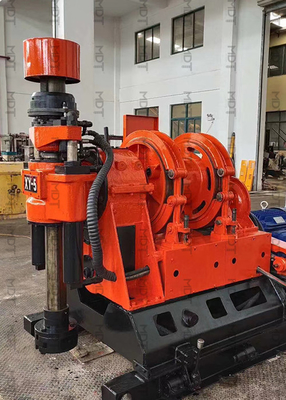

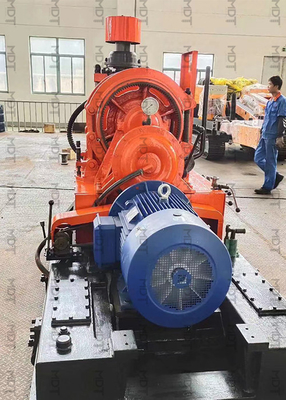

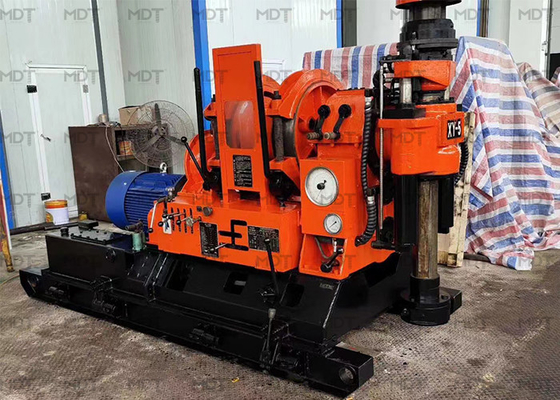

MEGA DRILLTECH Depth 1500m Hydraulic Core Drilling Machine For Mining
MDT-5 Hydraulic Surface Exploration Core Drilling Rig, Wheel Type Mining Exploration Drilling Machine
MDT-5 TR core drilling rig is suitable for conventional diamond core drilling in geological exploration such as metal and un-metal mine, coal and oil field, gas field etc. It can drill holes from vertical to elevation angle through various sorts of formation including soft, hard and broken or fractured formation by wet/dry or flush method.
● It is a mechanical transmis sionand hydraulicfeedingsp indled ri lling machine.Itisreas onablein constr uction,stabl einrunni ng.It assures goods ta bleperfor manc e,b reaki ngup andas controla ndmai ntain.
● Ithasa wi erang eofr otary speedwhic hcanb echang ,andissu itable for vario usdrill ingmet hodssuc hascarbi debitdril lingand diamon dbit drillinge tc.
● Th emac hine inc om bina tionw ithdr illing mast ismou ntedon he avy-duty wheele dtrai ler suitable for t owin gover roug hte rrai n,so itass ures ra pidan dconv enien tmount andtransp ort.
● As eri eso fmet erisp rovidedf orfined rilli ngco ntrol,suc hasp ressur egauges,bi tpress ure gaug esindi cating differentpre ssure,feeds peedg auge setc.
| drilling depth | 1500/1150 / 780m |
| drill specifications | BQ / NQ / HQ |
| hole diameter | φ150mm |
| final hole diameter | φ75mm |
| Drilling dip | 0 ~ 90 ° |
| Rotator Type | Chase Drive |
| scroll through holes | φ96 |
| Spindle speed rpm | n 87; 170; 267; 301; 362; 591; 928; 1262; anti-67; 230 |
| Spindle stroke | 500mm |
| scroll down to maximum speed without load | 3.42m / min |
| scroll upward-load maximum speed | 2.28m / min |
| scroll up maximum weight | 135kN (cylinder chamber pressure 8MPa time) |
| scroll down to the maximum pressure capacity | 90kN (cylinder chamber pressure 8MPa time) |
| line speed (m / s) | 0.891.742.733.183.746.08 |
| mentioning weight (kN) | 4023.4161410.47.2 |
| reel rope capacity (six) | 140 米 |
| wire rope specifications | φ18.5 mm (6 × 37) |
| coring winch line speed single rope l | 1.5m / s |
| Single rope lifting | 12kN |
| rig moves backward stroke | 450mm |
| rigs rated load | 150kN |
| lifting height | 7m |
| Auxiliary power | Diesel 80 hp motor 55Kw |
| Equipment Dimensions (L × W × H) | Transportation state 8800 × 2250 × 3600mm Construction Status 6000 × 5000 × 9800mm |
| Equipment Total weight | 7500kg |
| towing speed | ≤10km / h |
