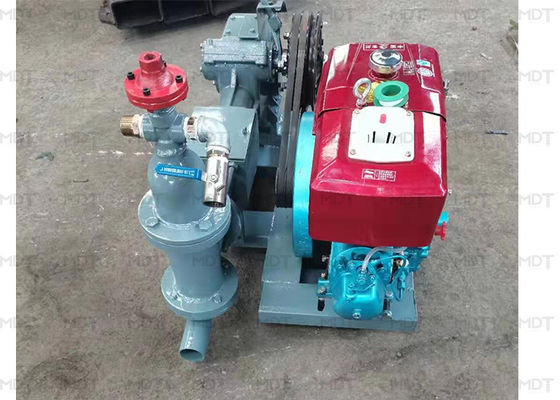

7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump

7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump
7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump 7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump 7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump 7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump 7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump 7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump

Large Image :  7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump

Product Details:
Place of Origin: CHINA
Brand Name: MEGA DRILLTECH
Certification: ISO9001
Model Number: MDT-3600
Payment & Shipping Terms:
Payment Terms: T/T, T/T

7.5KW 3600l/H Hydraulic Grout Pump High Pressure Cement Grouting Pump

Description
High Light:

7.5KW hydraulic grout pump

,

3600l/H hydraulic grout pump

,

7.5KW high pressure cement grouting pump

3600l/H,Concrete Cement Grouting Injection Pump/Cement Grouting Machine, Grouting Injection Pump

Grouting Pump Introduction:



What is the Role of the Grouting Pump?



The MDT grout pump can be used to fill small gaps and door jams, and there are five types of manual, electric, gas, hydraulic and pneumatic to choose from. The portable grout pump is strong enough to lift concrete up many floors.



MDT Grouting Pump Machine Parameter

Product Description

Model MDT-3600 (single cylinder)
Capacity 3600L/H
Power 7.5KW
The max diameter of aggregate ≤3mm
W/C ≥0.30
Injection Pressure 8MPa
Vertical conveying distance 50m
Horizontal conveying distance 150m
Dimensions(mm) 1800*1020*1600
suction hose diameter  51mm
discharge hose diameter  32mm
N/W(kg) 220Kg

Grouting Pump Features:

Repair and maintain easily.

Small volume and lightweight, convenient for moving.



Grouting Pump Applications:



Heavy construction tunnels, dams, shafts, mining, geotechnical engineering, building construction, repair and maintenance works. This machine can transport a variety of construction materials, such as cement, anchor mortars, premixed cement/sand/flyash mixes.

If you want to know more MDT grouting pump price knowledge, click here to consult us.
