101mm Single Rotary Triple Mazier Sampler For Sandstone And Soft Rock

offshore ,soil sampler ,101mmMazier,Mazier sampler M101 core barrel ,101mmMazier

M101 TC (Tungsten Carbide) Core Bits possess no as hard cutting media as diamond so have a limited range of application; they are a very cost effective choice for drilling softer unconsolidated formations and is applied primarily in geotechnical soil investigation or for core drilling in overburden layers that are composed mainly of clay, sand, gypsum or soft shale. The Forsun TC Core Bit’s crown is composed of a tough, wear resistant matrix body with tungsten carbide wear pads gauge protection.

Mazier sampler M101 core barrel

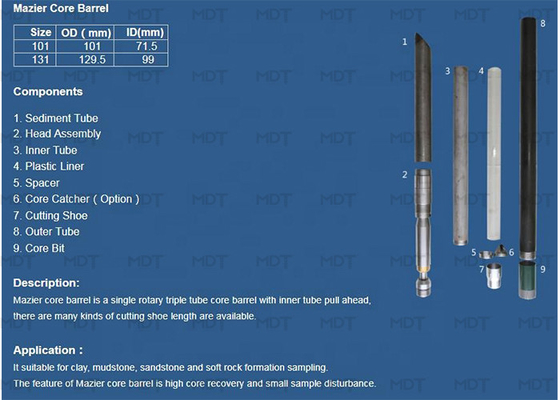

Components:

1. Sediment Tube

2. Head Assembly

3. Outer Tube

4. Inner Tube

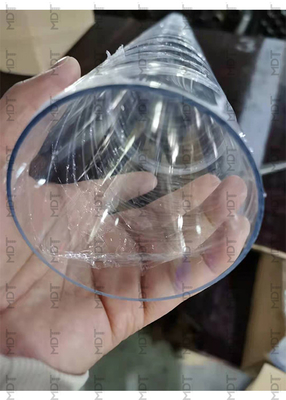

5. Plastice Liner

6. Stabilizer

7. Cutting Shoe

8. Core Bit

Descriptions:

Mazier 101 core barrel is a single rotary triple tube core barrel with inner tube pull ahead,

there are many kinds of cutting shoe length are available.

Application:

It suitable for clay, mudstone, sandstone and soft rock formation sampling.

The feature of Mazier core barrel is high core recovery and small sample disturbance.
