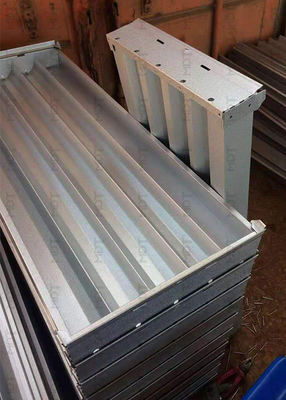

Steel HQ Core Trays Block Core Drill Box BQ NQ PQ 1000mm Length

steel BQ NQ HQ PQ steel core block,Plastic Core Trays block, steel Core box block

Feature:

1. Triangle support on the bottom to Strengthen box’s load capacity.

2. Two lines of 7mm width drainage hole on the end to make sure mud flows smoothly.

3. Block is inserted inside core tray to tell different rock core apart.

4. Paper tag on the top end to remark core information.

5. 30 pieces of core trays can be stacked tightly without falling down.

Model:NQ
Size:1070×385×55
Inseam Length:1m
The width of each slot :55mm
Length of Cores to hold:5m
Lattices Nos:5
Weight: 2.2kgs (approx.)

Model: HQ
Size: 1070×385×70
Inseam Length: 1m
The width of each slot : 69mm
Length of Cores to hold: 4m
Lattices Nos: 4
Weight: 2.4kgs (approx.)

Model: PQ
Size: 1070×385×93
Inseam Length: 1m
The width of each slot : 92mm
Length of Cores to hold: 3m
Lattices Nos: 3
Weight: 2.8kgs (approx.)
