PQ Double Packer

PQ Double Packer
PQ Double Packer PQ Double Packer PQ Double Packer PQ Double Packer PQ Double Packer PQ Double Packer

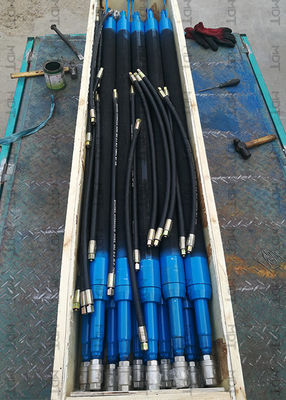

Large Image :  PQ Double Packer

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: NQ packer

PQ Double Packer

Description
High Light:

Manual Inflation Double Packer

,

PQ Double Packer

,

Rubber Surface Double Packer

PQInflatable packer for grouting



Inflatable seal packer features:


1. All materials of the hole packer are inflaming retarding and antistatic and meet related national standards.

2. The high elasticity and tightness of rubber is utilized, so that the hole packer is applicable to irregular holes and better sealing performance can be realized especially in soft coal seams.

3. The rubber surface is processed by adopting special technologies, so that excess water will be extracted and grout will not flow out.

4. By using the hole packer's characteristics of high resistance to pressure, it may be used to realize high-pressure grouting on coal body, so that the grout can enter the gaps between coal seam and thus ensure the quality of hole sealing.

5. The hole sealing length may be designed at will.
6. It is applicable to all types of coal seams, whether soft or hard.
7. After boring is completed, the hole may be pre-sealed by using water pressure in the mine and then sealed by injecting grout.

8. It is easy to operate and can complete the hole sealing operation at one attempt.





Spec. & Model
mm





Length
mm





Outside Diameter
mm





Applicable Aperture
mm





Free-Expansion Outside Diameter
mm





Working Pressure
Mpa





Burst Pressure
Mpa





Proof Pressure
Mpa



MDT-30/15 L±5 30±1 32-37 40-50 15 16 8
MDT-38/20 L±5 38±1 40-55 58-68 20 16 8
MDT-38/6 L±5 38±1 40-50 60-75 6 24 12
MDT-50/6 L±5 50±1 55-70 70-85 6 24 12
MDT-55/6 L±5 55±1 60-80 90-105 6 20 10
MDT-63/5 L±5 63±1.5 65-95 95-110 5 16 8
MDT-70/4 L±5 70±1.5 75-115 105-120 4 16 8
MDT-125/6 L±5 125±2 130-180 200-230 6 16 8
