Product Details:
|
| Highlight: | horizontal triplex Drilling Mud Pump,Drilling Mud Pump triplex,200r/min Triplex Drilling Mud Pump |
||
|---|---|---|---|

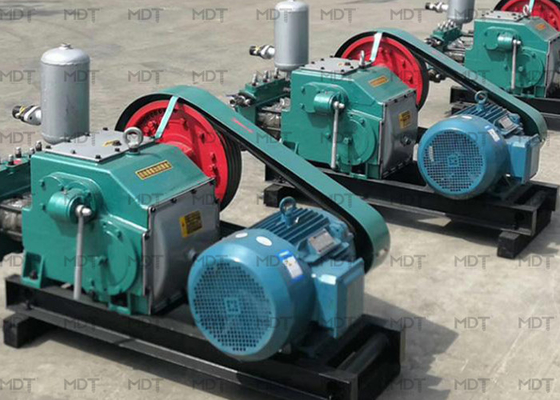

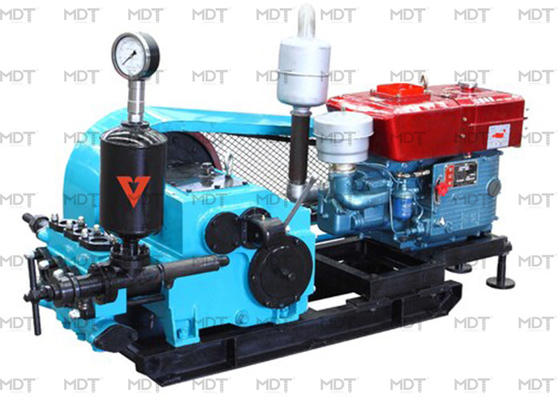

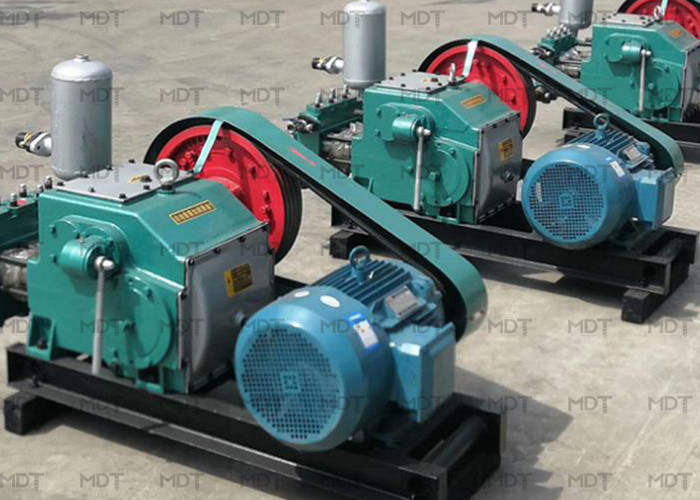

MDT160/10 mud pump is a light horizontal triplex single action reciprocating piston pump,it has many good features like small size,light weight,long life,easy to be transported, good performance,and using many standard or universal industrial parts.It is suitable for geological prospection.geological engineering drilling within 1000 meters in various like railway,water conservance, metallurgy,construction and geology.
| MDT-160/10 | ||||
| Type | horizontal triplex reciprocating acting | |||
| Cylinder diameter | 70mm | |||
| Stroke | 70mm | |||
| Speed(r/min) | 200 | 132 | 83 | 55 |
| Displacement(l/min) | 160 | 107 | 67 | 44 |
| Pressure(Mpa) | 2.5 | 4 | 6.5 | 10 |
| Input torque | 150N*m | |||
| Input speed | 610r/min | |||
| Power(KW) | 11(electric motor) | |||
| Power(KW) | 14.7(diesel engine) | |||
| Suction pipe diameter | 51mm | |||
| Drain pipe diameter | 25mm | |||
| Weight(Kg) | 500(include electric motor) | |||
| 560(include diesel engine) | ||||
| Dimengsion | 1525×830×950mm | |||
| 1920×830×1000mm | ||||
