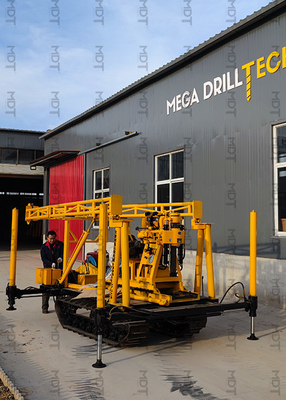

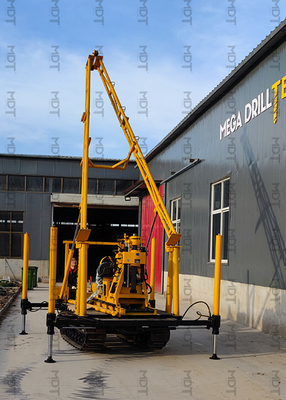

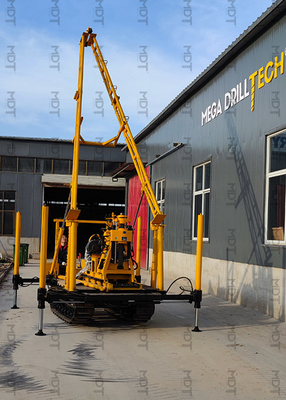

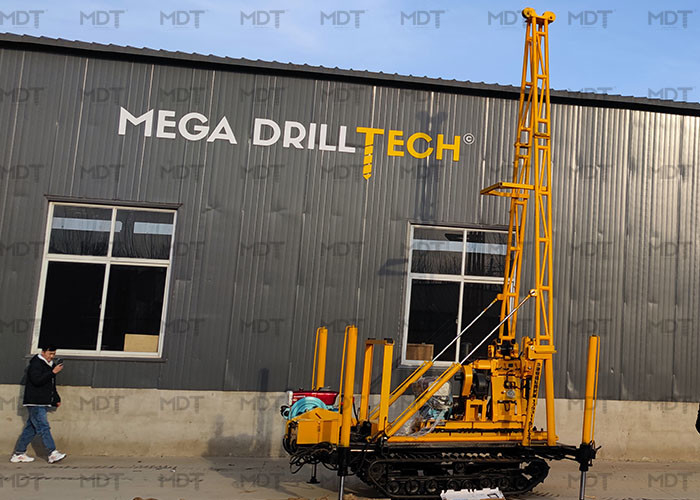

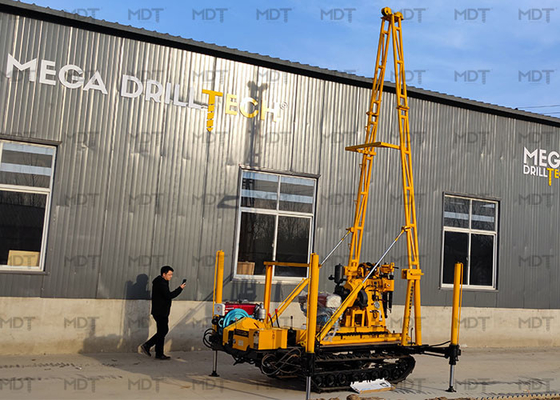

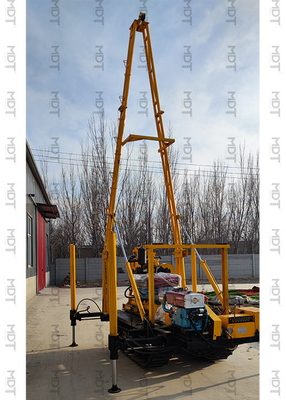

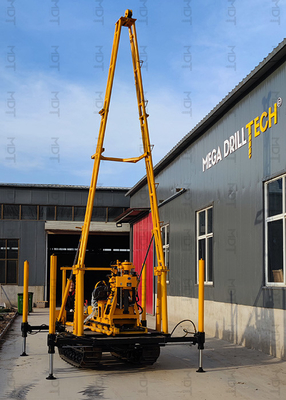

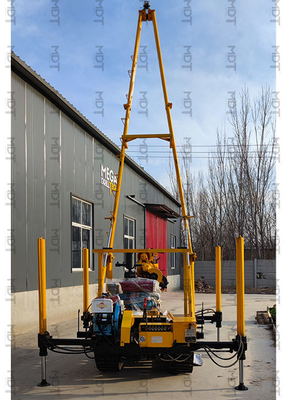

Crawler Mounted Hydraulic Crawler Drilling Rig

Crawler Mounted Hydraulic Crawler Drilling Rig
Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig Crawler Mounted Hydraulic Crawler Drilling Rig

Large Image :  Crawler Mounted Hydraulic Crawler Drilling Rig

Product Details:
Brand Name: MEGA DRILLTECH
Model Number: MDT-200
Payment & Shipping Terms:
Payment Terms: T/T

Crawler Mounted Hydraulic Crawler Drilling Rig

Description
High Light:

60m Hydraulic Crawler Drilling Rig

,

Crawler Mounted Hydraulic Crawler Drilling Rig

,

Crawler Mounted Hydraulic Drilling Rig

It is widely used in the construction of the projects e.g. prospecting, railway, road, port, bridge, water conservancy and hydro power, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

Product Features:

1. Diesel engine and electric motor as power.(convenient for places of insufficient of electricity)

2. Integrative Drilling Tower:
Tower is supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. The operation is extremely convenient, saving time and labor effort,creating maximum benefit for the user.

3. Crawler mobile base :

The chassis used crawler type achieve rapid turnarounds, very convenient for movement.

4. Long stroke hydraulic supporting leg can be used for transportation, loading and unloading of the drill automatically without the help of the lifting equipment. The hydraulic leg can rapidly make the drill level in the coordination with the universal level instrument.

5. electric-start diesel engine:
It greatly reduces the labor intensity of operators, especially more efficient in the cold season when the diesel engine start is difficult, showing its great advantage.

6. The machine is equipped with a complete set of independent BW - 160 mud pump, with high pump flow rate and pressure, convenient maintenance, convenient to buy spare and accessory parts all around.

7. BW-160 mud pump is mounted on the rig, which is more practical in operation and save more space.



The specifications of MDT-200 crawler mounted hydraulic geotechnical drilling rig:

Basic Parameter
Drilling depth 60m 225m 295m
Drilling diameter 300mm 76mm 46mm
Drill pipe diameter 50   42
Spindle turnable angle 0°~ 360°
Weight without engine 2745 kg
Dimension (length * width * height) 3800 * 1900 * 2300 mm
Rotary Table
Rotate speed 900, 475, 388, 205, 157, 68 r/min
Maximum torque 2000 N*m
Feeding travel 400 mm
Maximum cylinder feeding force 29 KN
Maximum cylinder lifting force 39 KN
Lifter
Lifting capacity 30 KN
Bobbin line speed, 2nd layer 0.27, 0.64, 0.83, 1.58, 1.64 m/s
Bobbin diameter 135 mm
Rope diameter 12.5 mm
Rope capacity 30 m
Oil pump
Type CBF-F420-ALPL Gear Oil Pump
Displacement 20 Ml/R
Rated speed 2500 r/min
Rated pressure 20 MPa
Maximum pressure 25 MPa
Rig Power
Rated power 16.2 KW (ZS-1115 diesel)
Rated speed 2200 r/min (ZS-1115 diesel)
Rig engine weight 190 kg (ZS-1115 diesel)
Frame
Type Sliding type with base frame
Movable travel of drill 400 mm
Distance between drill and hole-opening 270 mm
Crawler Chassis
Crawler engine model ZS1105M
Rated power 13.24KW
Rotate speed 2200 r/min
Crawler engine weight 165kg
