Drilling SPT Sampler Tuflok

Drilling SPT Sampler Tuflok
Drilling SPT Sampler Tuflok Drilling SPT Sampler Tuflok Drilling SPT Sampler Tuflok Drilling SPT Sampler Tuflok

Large Image :  Drilling SPT Sampler Tuflok

Product Details:
Place of Origin: CHINA
Brand Name: MEGA DRILLTECH
Certification: ISO9001
Model Number: SPT core catcher
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: wooden case
Payment Terms: T/T, T/T

Drilling SPT Sampler Tuflok

Description
High Light:

Drilling SPT Sampler

,

SPT Sampler Tuflok

,

Drilling SPT Sampler Tuflok

SPT core catcher



SPT Split Tube Sampler design for carry out the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990 and ASTM standards. The Top Ball Valve Adaptor, pair of Split Spoons, and open SPT Shoe compose a complete of Split Tube Sampler. A Basket Retainer made from steel also is available as an option the sampler. The ball valve adaptor prevents samples from being washed out of the sampler when it is withdrawn from the borehole. A 60 degree nose cone or long solid rod with 60 degree point is available for carrying out SPT (c) tests in gravel and loose material. The screw connection on the top adaptor depends on the type of drill rods being used to drive the sampler. Most frequently used rods are 1-1/2" B.S. Whitworth, NWY Rod, BW or AW.

The standard Split Tube Sampler is 2" (50.8 mm) OD x 1-3/8" (34.9 mm ) ID x 18" (457 mm) / 24" (610 mm) long. For heavy driving conditions, the Heavy-duty "Tuflok" design is available.







Components:
1. Ball Valve Adaptor
2. SPT Solid Rod
3. SPT Nose Cone
(2). Split Tubes

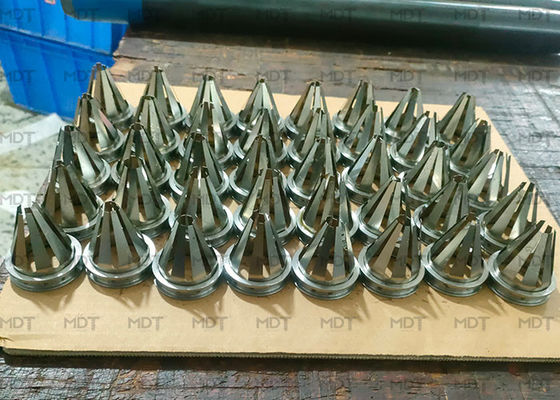

(3). Basket Retainer
(4). SPT shoe

Condition:
New
Warranty:
3 months
Applicable Industries:
Energy & Mining
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Place of Origin:
Shandong, China
Brand Name:
Lake
Type:
SPT sampler
Machine Type:
Drilling Tool
Material:
Carbon steel
Processing Type:
Forging
Use:
Coal Mining
Product name:
SPT Split Tube Sampler
Model Number:
18", 24", 457mm, 610mm
Drill Hole Diameter:
2" and 3"
Thread connection:
1-1/2" B.S. Whitworth, NWY, BW, AW
Machine Type::
spt split spoon sampler
Local Service Location:
None
