Product Details:
|
| High Light: | 153kw diamond core rig,1600m diamond core rig,1600m Depth Diamond Core Rig |
||
|---|---|---|---|

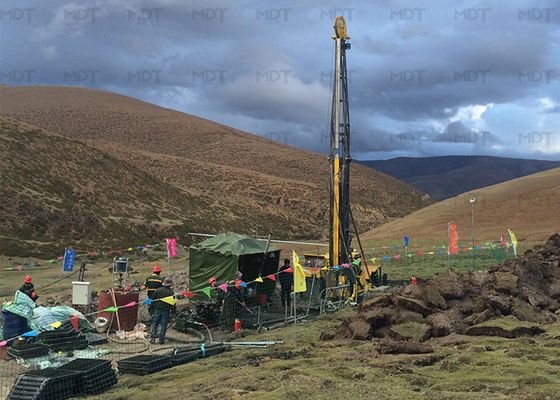

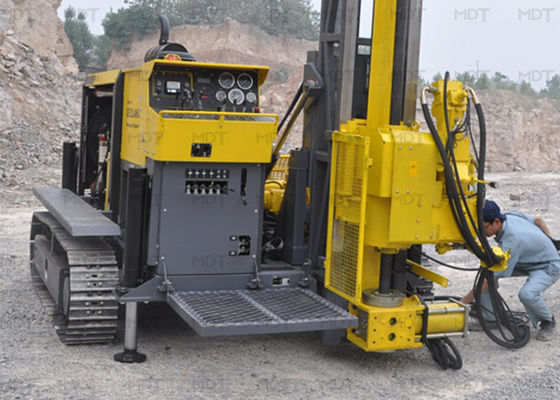

The MDT1600 is the medium-deep-hole surface core drilling rig. It fully reflects the world advanced technology of exploration core drilling equipment. The Precision Hydraulic Control system, Canadian-origin rotation unit and the Nitrogen Rod Holder ensure efficient, deep drilling. . MDT1600 core drilling rig is available as trailer-mounted (standard), track-mounted (optional),it makes the drilling rig easy transport in the complex mountain. The MDT1600 rig has a drill capacity of NQ 1250 m(BQ 1600m), and this flexible drilling rig can handle up to 3 m and 6 m core barrels.
The MDT1600 surface drill rig equips with Canadian-origin Christensen rotation unit and Funk Gearbox,it can achieve fast feed in the condition of high torque and high rotational speed.
The MDT1600 surface drill rig adopts Precision Hydraulic Control technology, it can work steadily in remote areas and the harsh operation condition.The MDT1600 surface drill rig adopts Precision Hydraulic Control technology, it can work steadily in remote areas and the harsh operation condition.The powerful Braden Main Hoist works efficient and reliable; The hoist speed and lift position control precision, flexible steering; Mechanical and hydraulic brake, logic control to ensure safety.According to the needs of different working conditions, the MDT1600 core drilling rig is available as trailer-mounted and track-mounted ,it makes the drilling rig easy to set up and transport.
| Drill Depth(BQ,NQ,HQ,PQ) | 1600m,1250m,880m,570m |
| Power | 153KW |
| Spindle speed | 1800rpm |
| Electrical system | 24V |
| Single line capacity(Main hoist) | Bare drum 80kN |
| Line speed(Main hoist) | Bare drum 44m/min |
| Wireline capacity | 1830m x 4.76mm,975m x 6.35mm |
| Wireline pull | Bare drum11.9kNFull drum3.0kN |
| Wireline speed |
Bare drum 114m/min Full drum 453m/min |
| Feed travel | 3.5m |
| Thrust | 59.6kN |
| Pull | 138kN |
| Drilling angle | 45 to 90 degrees |
| Rod pull length | 6.09m |
| Spindle(Chuck) | 117mm(ID) |
| Holding capacity | 18143 kg |
| Max inside diameter(Rod holder) | 210 mm |
| Holding capacity(Rod holder 0 | 13000 kg |
| Crawler speed | 3.3 km/h |
| Crawler control method | Radio Remote Controlled |
BQ/NQ/HQ/PQ:
1600 m / 1250 m / 880 m / 570 m
- Canadian-origin Christensen chuck and rotation unit
- Funk Gearbox and Braden Main Hoist
- Nitrogen Rod Holder
- The World Advanced Technology of Exploration Core Drilling Equipment.
