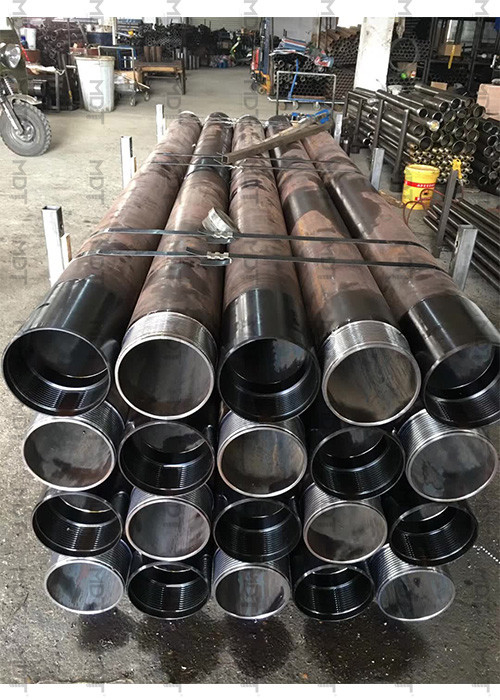

127mm Casing Pipe

127mm Casing Pipe
127mm Casing Pipe

Large Image :  127mm Casing Pipe

Product Details:
Place of Origin: CHINA
Brand Name: MEGA DRILLTECH
Certification: ISO9001
Model Number: 127mm
Payment & Shipping Terms:
Packaging Details: BUNDLE PACKING
Payment Terms: T/T, T/T, T/T, T/T, T/T

127mm Casing Pipe

Description
TYPE: 273 Casing Pipe
High Light:

127mm Casing Pipe

,

ISO9001 Casing Pipe

,

Flush Coupled Casing Pipe



W Casing Numbers
Std OD (mm) ID (mm) Wall Thickness
(mm)
Thread Pitch
(mm)
Pin Thread Length
(mm)
Weight
(kg/m)
AW 57.20 48.40 4.40 6.35 57.20 5.73
BW 73.00 61.00 6.00 6.35 63.50 10.51
NW 88.90 76.20 6.35 6.35 69.90 12.92
NWA 91.00 80.00 5.50 6.00 72.00 11.59
HW 114.30 101.60 6.35 6.35 76.20 16.90
PW 139.70 127.00 6.35 8.47 82.60 20.87





WT Casing Numbers
Std OD (mm) ID (mm) Wall Thickness
(mm)
Thread Pitch
(mm)
Pin Thread Length
(mm)
Weight
(kg/m)
HWT 114.30 101.60 6.35 10.16 62.74 16.90
PWT 139.70 127.00 6.35 10.16 62.74 20.87









NW HW PW Casing Pipe And Tube







Rod Model
OD (mm)
ID (mm)
Threads Pitch(mm)
Pin Length(mm)
Rod Length(m)
Packing Dimension (mm)
Gross Weight (KG)
Unit Bundle Qty (pcs)
BW
73
60.3
6.4
63.5
3
3200*370*330
595
7
NW
88.9
76.2
6.4
69.85
3
3200*500*400
760
7
HW
114.3
101.6
6.4
76.2
3
3200*400*300
373
7
PW
139.7
127
6.4
82.55
3
3200*500*400
463
7
HWT
114.3
101.6
10.2
44.45
3
3200*400*300
373
7



HWT PWT PW HW NW BX HX NX PX casing pipe



Forsun manufactures Metric Casing and Flush-Jointed Casing and Flush-Coupled Casing.

Sizes include BW, NW, HW, PW, HWT, 46mm, 56mm, 66mm, 76mm, 86mm, 98mm(101mm), 113mm(116mm), 128mm(131mm), 146mm(143mm), 4", 5", 6", 8", 10", 12", NX, HX, PX, 89 mm,108 mm, 127 mm, 110 mm.
