Product Details:
|
| High Light: | 300mm portable borehole drilling machine,150m portable borehole drilling machine,150m Depth Borehole Drilling Machine |
||
|---|---|---|---|

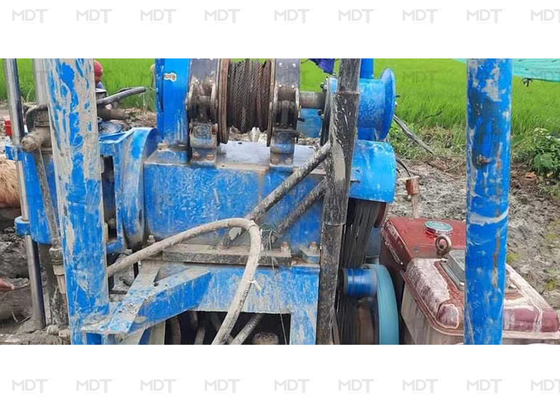

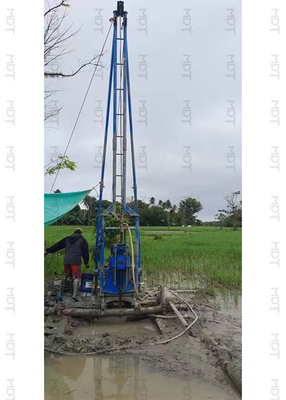

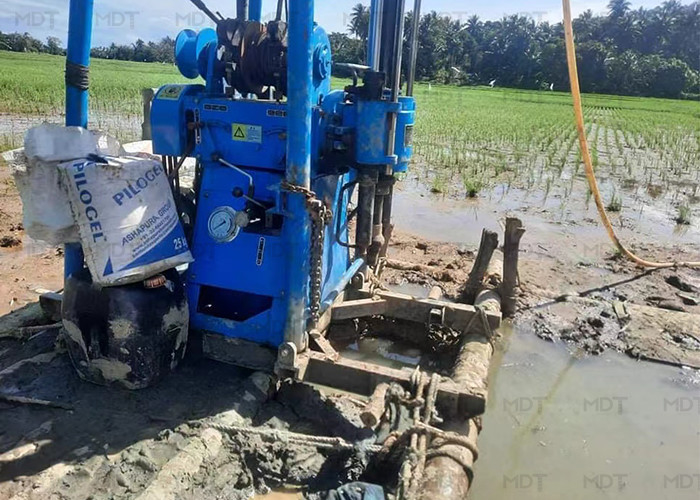

MDT-150 drill is a kind of multi-use portable engineering drill. It is mostly used for the engineering geological exploration and pile examination in railway,bridge,traffic,hydroelectricity or industrial and civil architecture. It can also used in minor diameter foundation piles drilling.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 150m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 42mm |
| Gross weight of drilling machine(engine not included) | 500kg |
| Dimension (length ×width × height) | 2050 × 1180 × 1420 mm |
| Revolving Plate | |
| Rotate speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20,000N |
| Maximum Cylinder lifting force | 30,000N |
| Lifter | |
| Lifting capacity | 24,000N |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 140mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Drilling rig | |

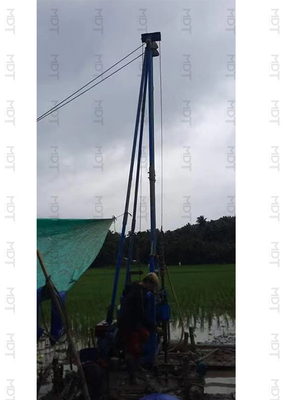

| Type | Steel pipe quadripod |
| Height | 6m |
| Drive motor | |

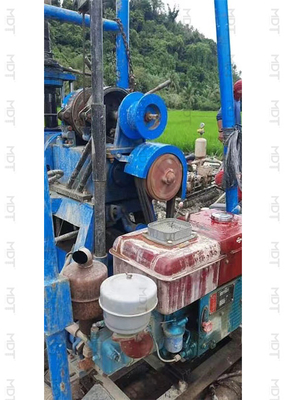

| Type | Changzhou ZS1100 diesel engine |
| Rated power | 11.03KW |
| Tare weighr | 150kg |
